Description

Key Features:

Designed for Layer Winding: Suitable for copper-drawn steel wire with a diameter of 4.0 mm.

Capacity: Supports up to 18 kg of wire, making it ideal for heavy-duty applications.

Stability: Unique construction ensures stability during winding and unwinding.

Eco-friendly: Low disposal cost and environmentally friendly design.

Material: Made from high-quality mild steel.

Finish: Available with a powder-coated finish upon customer request.

Tolerance: ±5% tolerance for all dimensions.

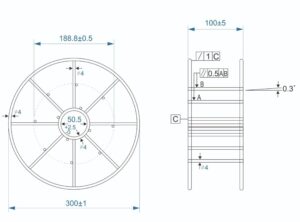

Dimensions:

Outside Diameter: 300 mm

Outside Width: 100 mm

Hole Diameter: 52 mm

Stick Diameter: 188 mm
